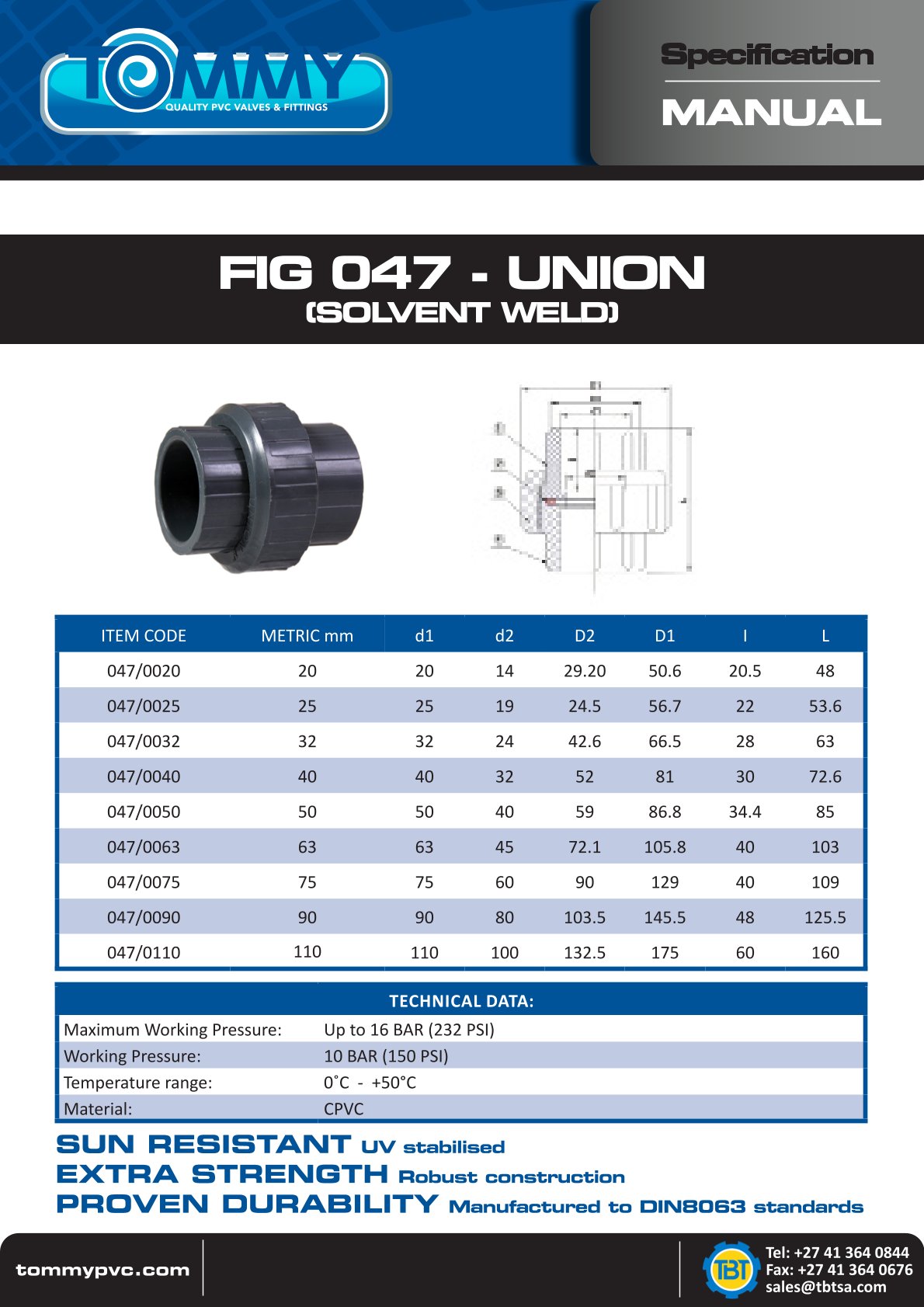

FIG 047 – uPVC Solvent Weld Union

UPVC products are used for water supply, irrigation, watering, swimming pool systems, chemical industry, food industry, etc.

Features:
UV stabilised
Robust construction

Product Dimensions

ITEM CODE	METRIC mm	d1	d2	D2	D1	I	L
047/0020	20mm	20	14	29.20	50.6	20.5	48
047/0025	25mm	25	19	24.5	56.7	22	53.6
047/0032	32mm	32	24	42.6	66.5	28	63
047/0040	40mm	40	32	52	81	30	72.6
047/0050	50mm	50	40	59	86.8	34.4	85
047/0063	63mm	63	45	72.1	105.8	40	103
047/0075	75mm	75	60	90	129	40	109
047/0090	90mm	90	80	103.5	145.5	48	125.5
047/0110	110mm	110	100	132.5	175	60	160

Maximum Working Pressure:
Up to 16 BAR (232 PSI)

Temperature Rating:
0˚C – +50°C

Material:
uPVC
