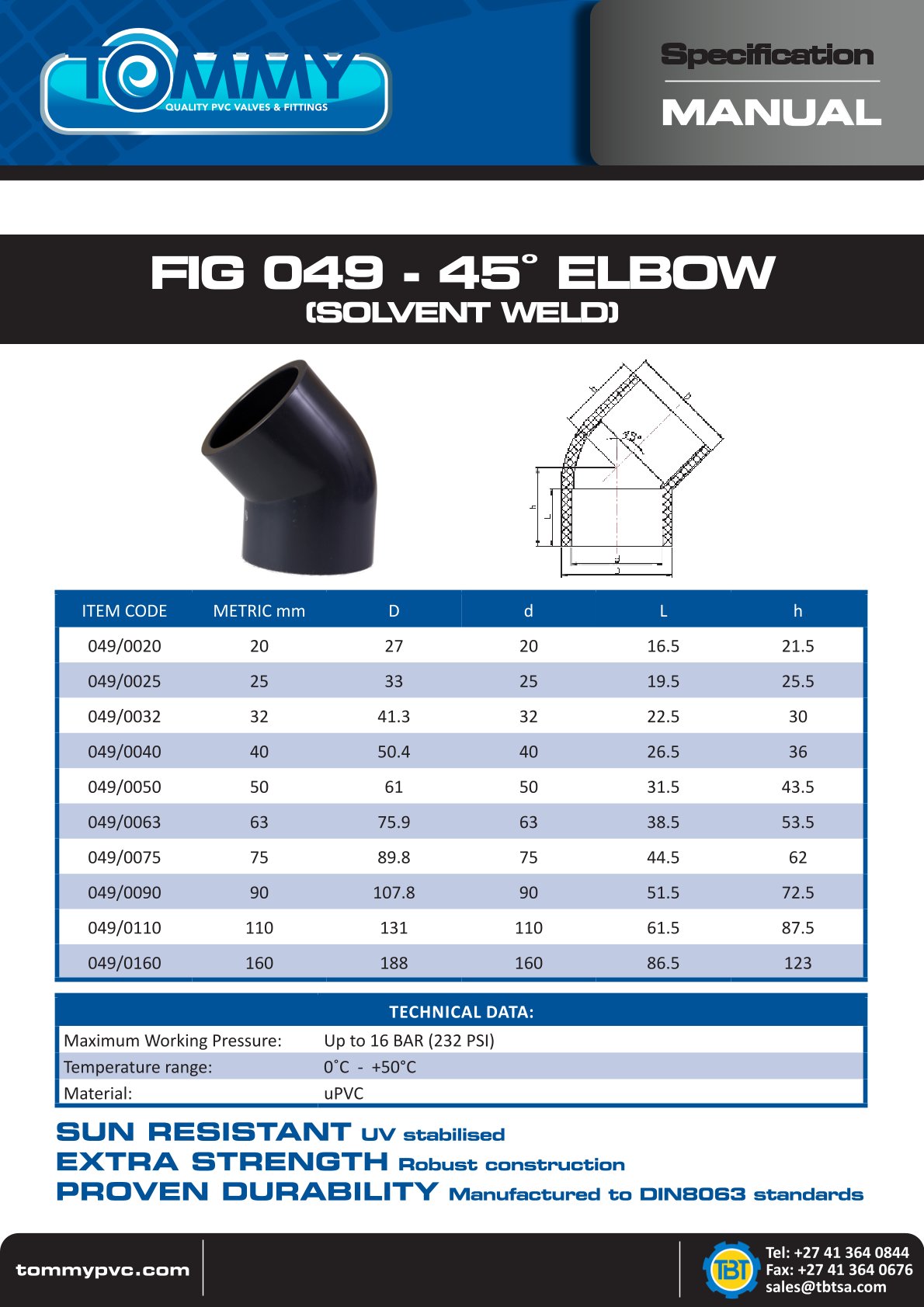

FIG 049 – uPVC Solvent Weld 45° Elbow

UPVC products are used for water supply, irrigation, watering, swimming pool systems, chemical industry, food industry, etc.

Features:
UV stabilised
Robust construction

[cs_pressure_conversion_calc title='My Pressure Conversion' text_color='#000000' background_color='#FFFFFF' header_color='#006daf' header_text_color='#FFFFFF' border_color='#e1e0e0']

Product Dimensions
Technical Data

Product Dimensions

Dimensions Table

ITEM CODE	METRIC mm	D	d	L	h
049/0020	20mm	27	20	16.5	21.5
049/0025	25mm	33	25	19.5	25.5
049/0032	32mm	41.3	32	22.5	30
049/0040	40mm	50.4	40	26.5	36
049/0050	50mm	61	50	31.5	43.5
049/0063	63mm	75.9	63	38.5	53.5
049/0075	75mm	89.8	75	44.5	62
049/0090	90mm	107.8	90	51.5	72.5
049/0110	110mm	131	110	61.5	87.5
049/0160	160mm	188	160	86.5	123

Technical Data

Maximum Working Pressure:
Up to 16 BAR (232 PSI)

Temperature Rating:
0˚C – +50°C

Material:
uPVC
