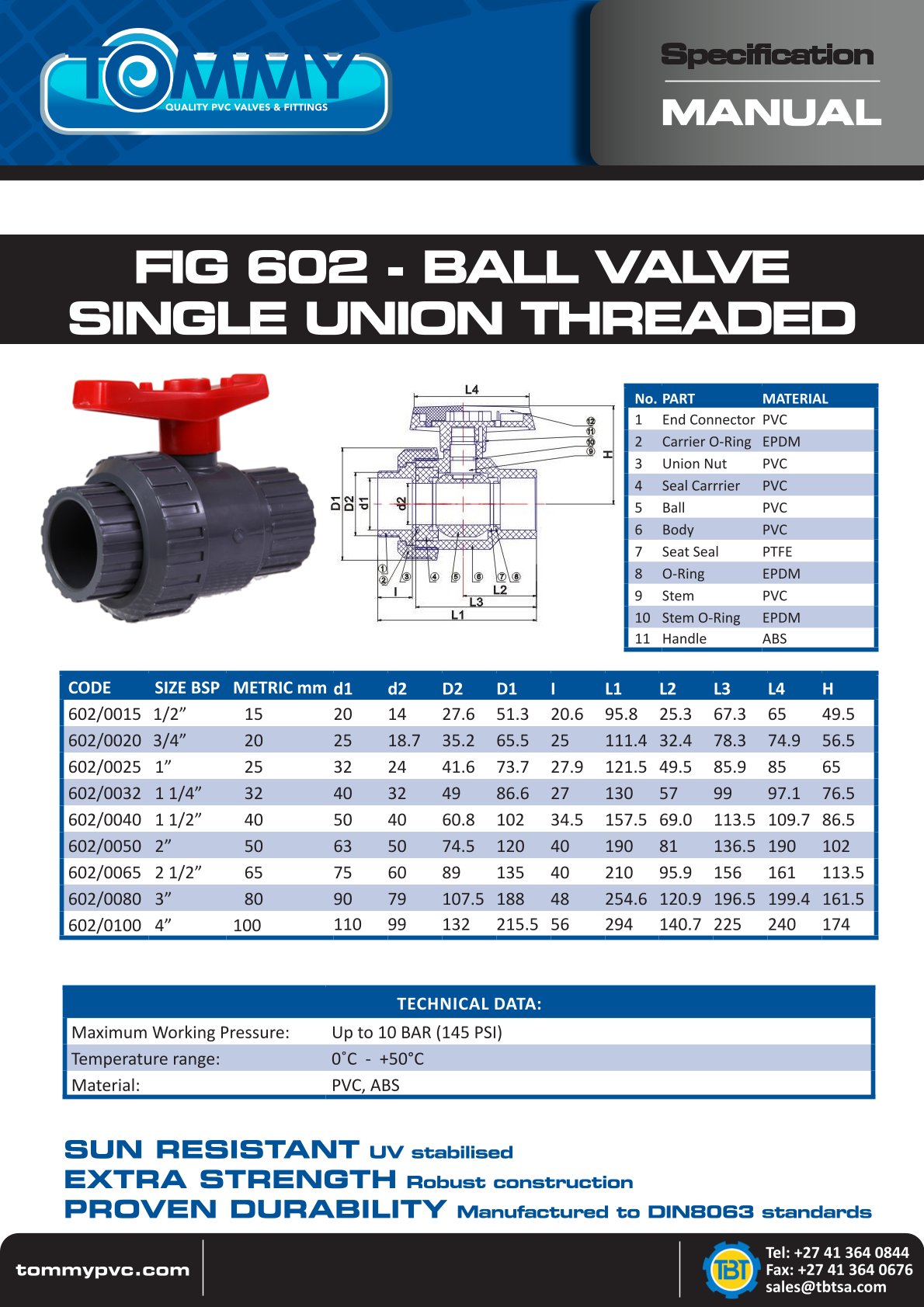

FIG 602 – Threaded Single Union Ball Valve

Features:
Valves are commonly used in chemical process, potable water, irrigation, water treatment and wastewater, landscaping, pool, pond, fire safety, brewing, and other food and beverage applications. They are a good low-cost solution for most flow control needs.

Product Dimensions

Dimensions Table

CODESIZEMETRIC CONVERSION
602/0015 1/2" 15mm
602/0020 3/4" 20mm
602/0025 1" 25mm
602/0032 1 1/4" 32mm
602/0040 1 1/2" 40mm
602/00502"50mm
602/0065 2 1/2" 65mm
602/00803"80
602/01004"100

Technical Data

Maximum Working Pressure:
Up to 145PSI (10BAR)

Temperature Rating:
Maximum 50°C

Suitable Applications:
Water, Oil, Gas

Material:
PVC, ABS
